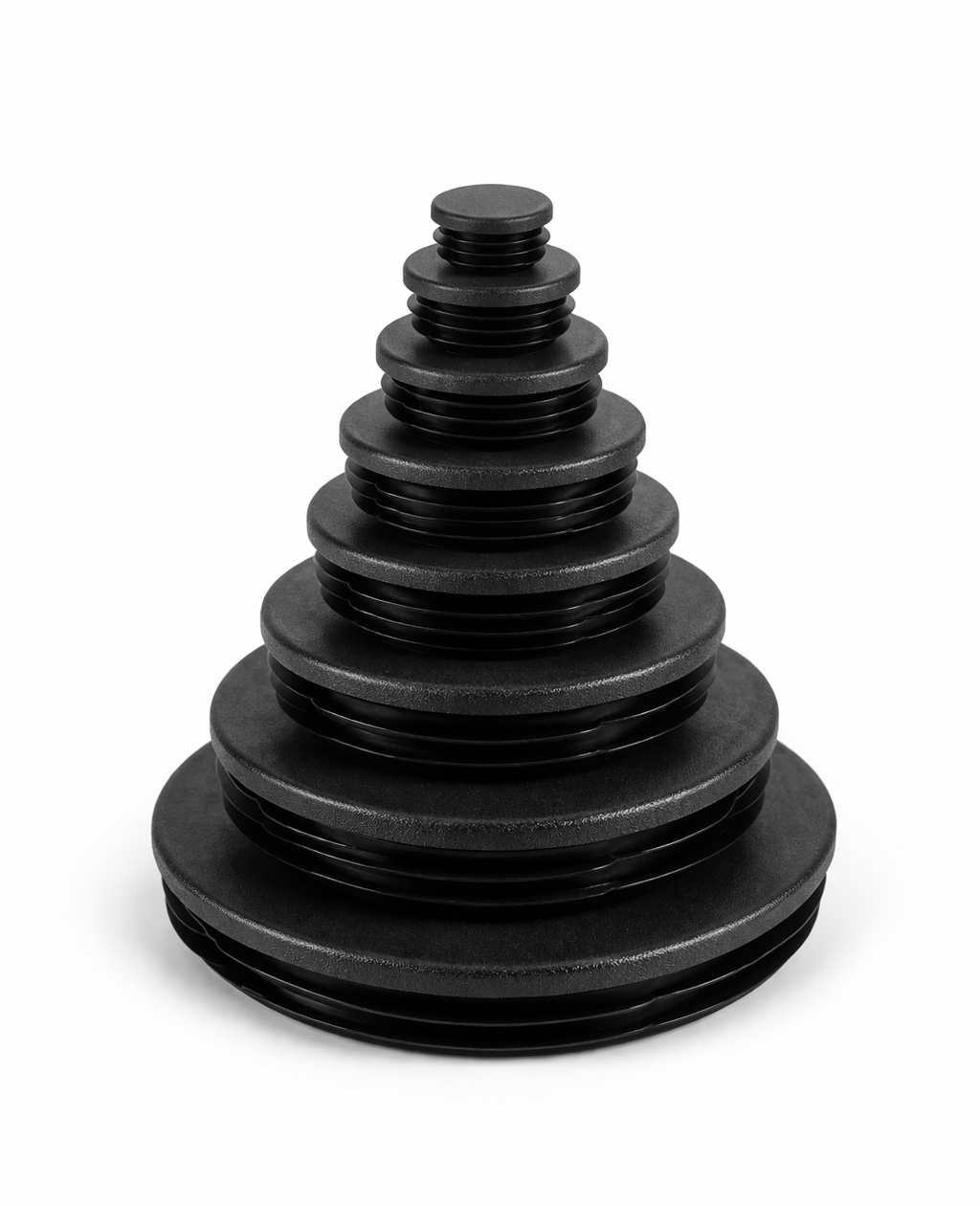

Ümarkork mm ja tollimõõdus ZO
RAL9005 – MUST; RAL7040 – HALL; RAL9010 – VALGE
| Tootekood | Tüüp | R-seina paksus | D (mm) | C (mm) | H (mm) | d1 (mm) | d2 (mm) |
|---|---|---|---|---|---|---|---|
| 527 | ZO 10 | 0,8-1,5 | 10 | 3,9 | 10,5 | 5,3 | 8,9 |
| 500 | ZO 12 | 0,5-1,5 | 12 | 3,0 | 12,5 | 730 | 11,5 |
| 547 | ZO 13 | 1,0-1,5 | 13 | 3,0 | 10,0 | 8,0 | 11,2 |
| 501 | ZO 14 | 1,0-1,5 | 14 | 3,5 | 9,9 | 9,5 | 12,9 |
| 528 | ZO 15 | 1,0-2,5 | 15 | 3,5 | 9,9 | 8,1 | 13,5 |
| 502 | ZO 16 | 1,0-1,5 | 16 | 5,0 | 12,7 | 10,3 | 15,0 |
| 503 | ZO 18 | 1,0-1,5 | 18 | 5,0 | 14,3 | 12,4 | 17,0 |
| 529 | ZO 19 | 1,0-1,5 | 19 | 4,0 | 11,3 | 12,1 | 17,8 |
| 504 | ZO 20 | 1,0-1,5 | 20 | 5,0 | 14,9 | 14,5 | 19,4 |
| 505 | ZO 22 | 1,0-2,0 | 22 | 5,0 | 14,8 | 15,9 | 20,8 |
| 506 | ZO 25 | 1,0-2,0 | 25 | 5,0 | 15,0 | 18,7 | 23,7 |
| 507 | ZO 27 | 1,0-2,0 | 27 | 5,0 | 15,0 | 19,6 | 25,4 |
| 508 | ZO 28 | 1,0-2,0 | 28 | 5,0 | 15,4 | 19,5 | 26,4 |
| 509 | ZO 30 | 1,0-2,0 | 30 | 5,0 | 15,0 | 25,0 | 29,0 |
| 510 | ZO 32 | 1,0-2,0 | 32 | 5,0 | 15,0 | 25,3 | 30,0 |
| 511 | ZO 35 | 1,0-2,0 | 35 | 5,0 | 15,2 | 25,8 | 32,8 |
| 512 | ZO 38 | 1,5-2,5 | 38 | 5,0 | 14,9 | 31,5 | 36,0 |
| 513 | ZO 40 | 1,5-2,5 | 40 | 5,0 | 15,0 | 32,0 | 38,8 |
| 530 | ZO 45 | 1,0-2,5 | 45 | 5,0 | 14,9 | 34,5 | 43,5 |
| 515 | ZO 50 | 1,2-2,5 | 50 | 5,0 | 18,0 | 42,5 | 48,5 |
| 539 | ZO 55 | 1,0-2,5 | 55 | 4,8 | 18,5 | 46,3 | 54,1 |
| 516 | ZO 60 | 1,5-3,0 | 60 | 5,0 | 19,5 | 50,9 | 58,4 |
| 514 | ZO 65 | 2,5-4,0 | 65 | 5,0 | 22,1 | 52,0 | 60,0 |
| 517 | ZO 70 | 1,5-4,0 | 70 | 5,0 | 22,1 | 59,0 | 67,2 |
| 518 | ZO 76 | 1,5-2,5 | 76 | 5,0 | 21,8 | 64,0 | 74,0 |
| 520 | ZO 80 | 1,0-4,0 | 80 | 5,0 | 21,3 | 67,4 | 78,5 |
| 521 | ZO 90 | 1,0-2,5 | 90 | 5,0 | 21,0 | 78,5 | 89,6 |
| 523 | ZO 102 | 1,0-5,0 | 102 | 5,0 | 21,6 | 88,9 | 101,0 |
| 540 | ZO 108 | 3,0-5,0 | 108 | 6,0 | 29,0 | 92,4 | 103,5 |
| 546 | ZO 114 | 3,0-5,0 | 114 | 6,0 | 32,5 | 98,5 | 108,8 |
| 524 | ZO 120 | 2,0-4,0 | 120 | 6,2 | 28,0 | 106,5 | 116,5 |
| 526 | ZO 130 | 2,0-5,0 | 130 | 5,0 | 31,5 | 113,0 | 127,2 |
| 2100 | ZO 140 | 2,0-6,5 | 140 | 6,0 | 33,5 | 124,0 | 136,3 |
| 2101 | ZO 150 | 2,0-7,0 | 150,7 | 6,0 | 33,5 | 134 | 149,8 |
| 2101 | ZO 160 | 2,5-7,5 | 160 | 6,0 | 34,0 | 142,0 | 153,0 |
| Tootekood | Tüüp | R-seina paksus | D (mm) | C (mm) | H (mm) | d1 (mm) | d2 (mm) |
| 531 | ZO 1/2″ | 2,0-3,5 | 21,3 | 5,0 | 20,0 | 12,4 | 16,8 |
| 532 | ZO 3/4″ | 2,0-3,2 | 26,9 | 5,0 | 20,0 | 19,4 | 23,4 |
| 533 | ZO 1″ | 2,5-3,2 | 33,7 | 5,0 | 20,0 | 24,8 | 28,5 |
| 534 | ZO 1 1/4″ | 2,5-3,6 | 42,4 | 5,0 | 15,0 | 33,5 | 40,8 |
| 535 | ZO 1 1/2″ | 2,0-3,6 | 48,3 | 5,0 | 17,5 | 37,8 | 45,5 |
| 2183 | ZO 1 1/2″ | 4,0 | 48,3 | 5,0 | 17,5 | 37,8 | 41,6 |
| 536 | ZO 2″ | 2,0-3,6 | 60,3 | 5,0 | 18,0 | 49,0 | 57,6 |
| 519 | ZO 2 1/2″ | 3,0-4,0 | 76,1 | 5,0 | 22,0 | 63,7 | 71,3 |
| 538 | ZO 3″ | 3,0-5,0 | 90,2 | 5,0 | 21,0 | 76,9 | 86,3 |
