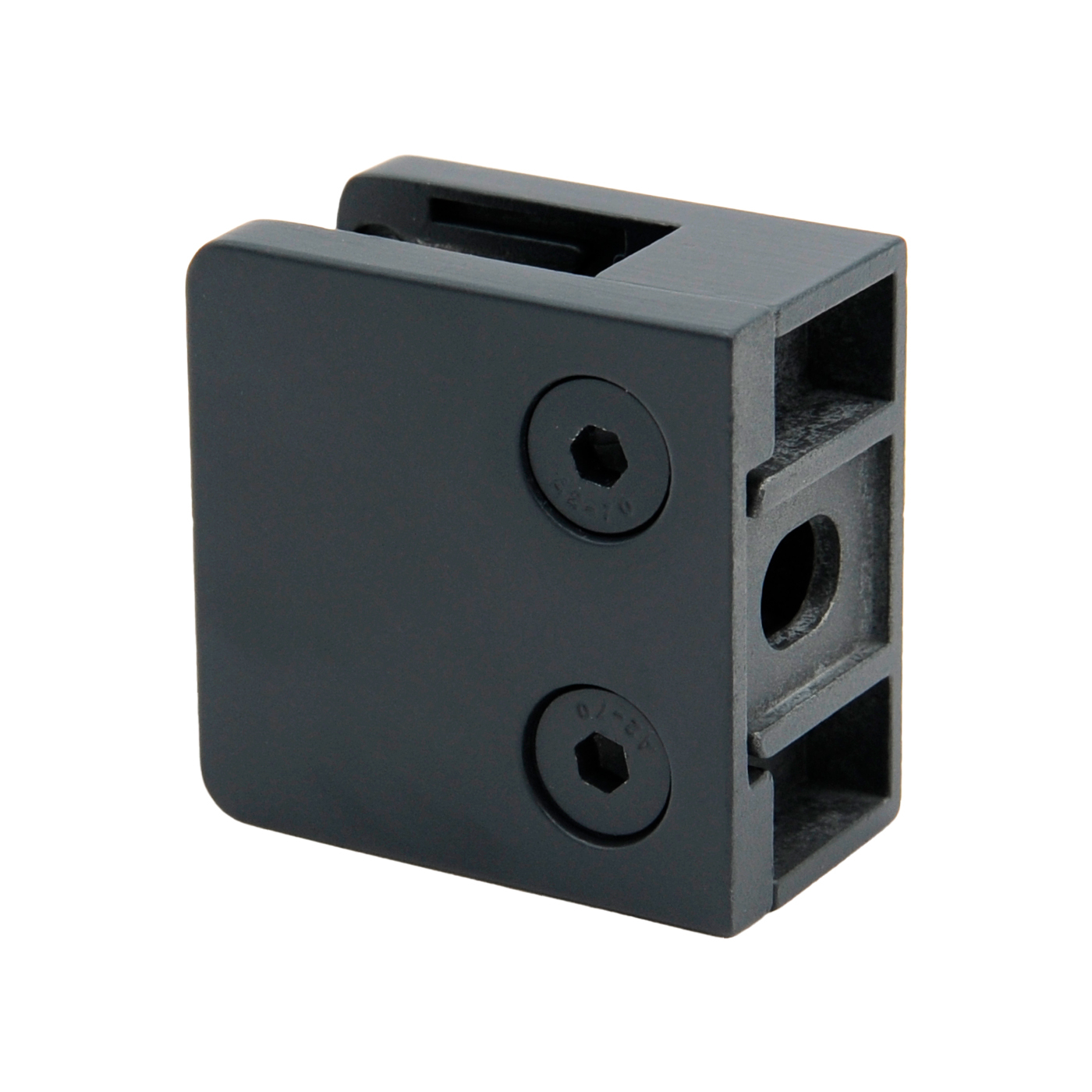

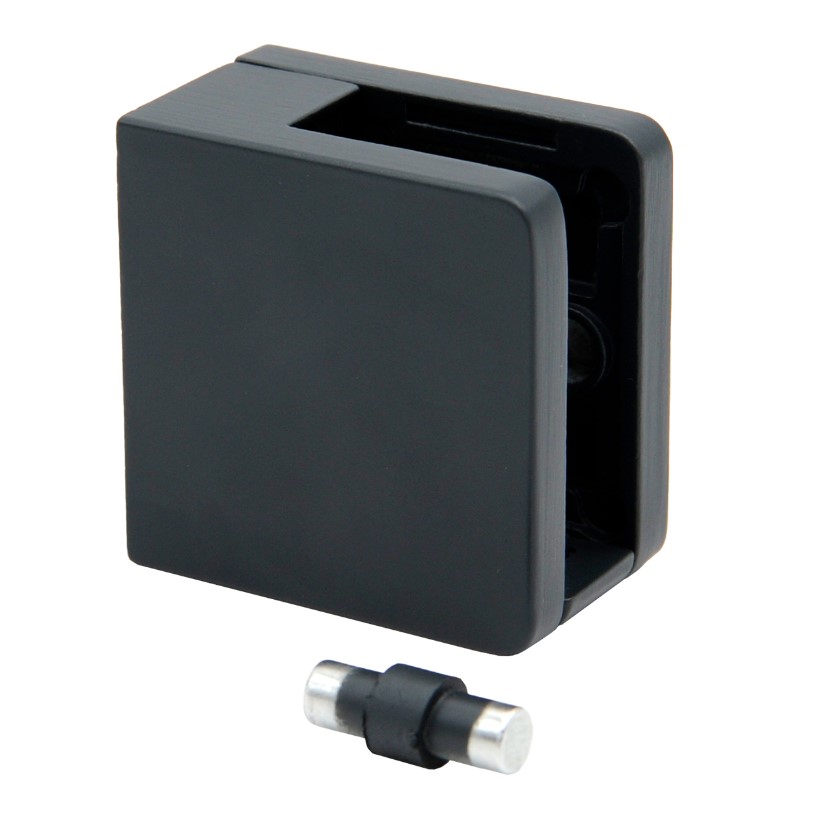

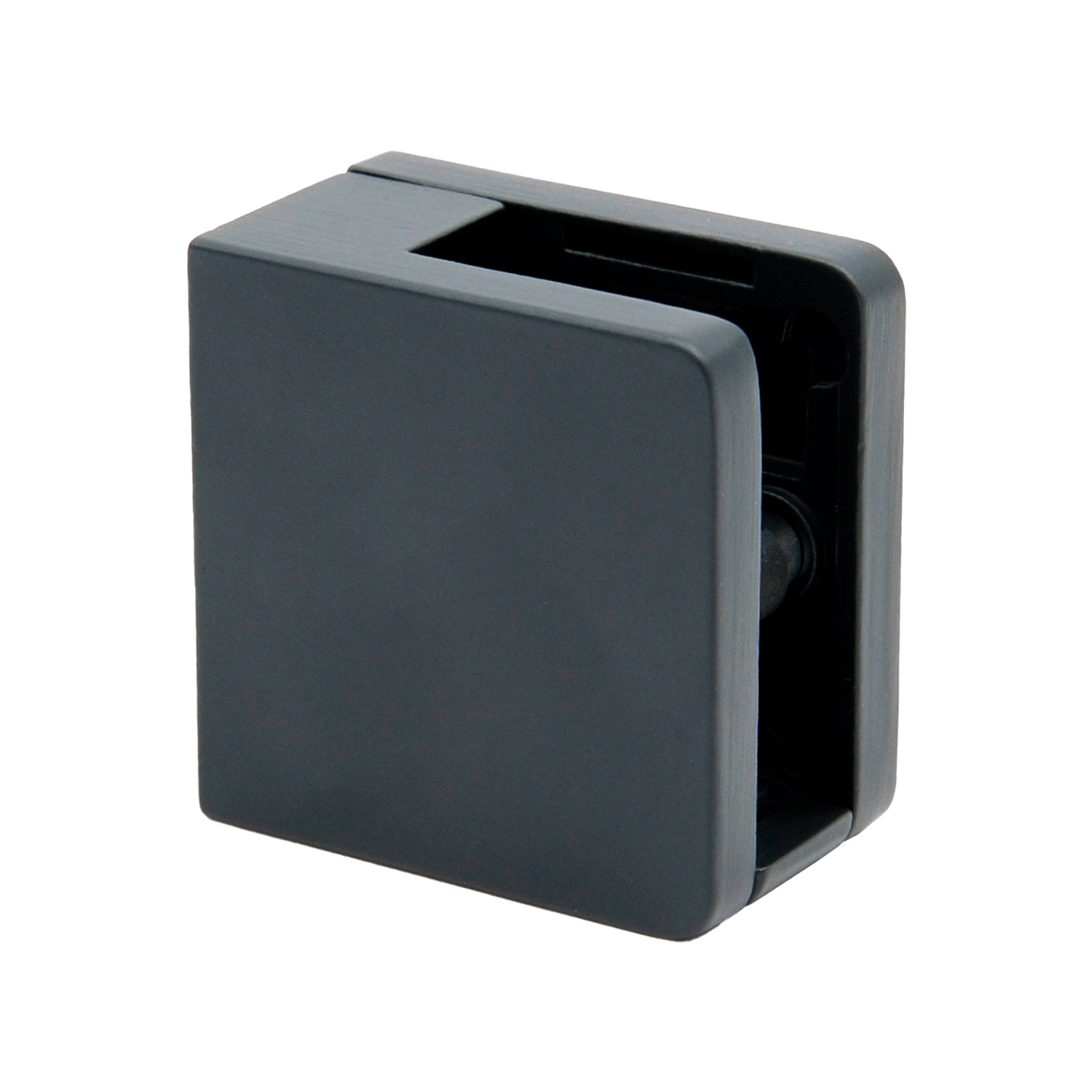

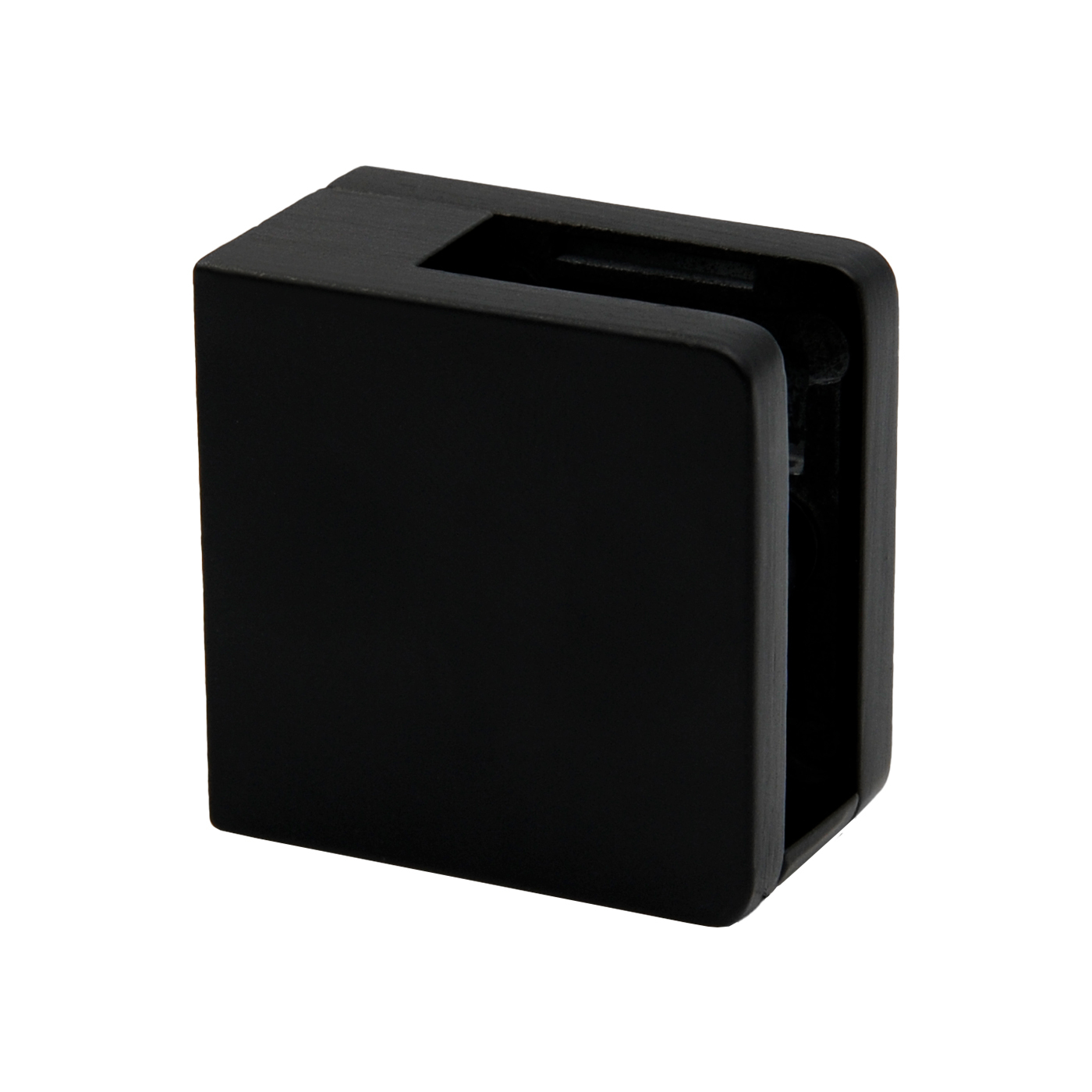

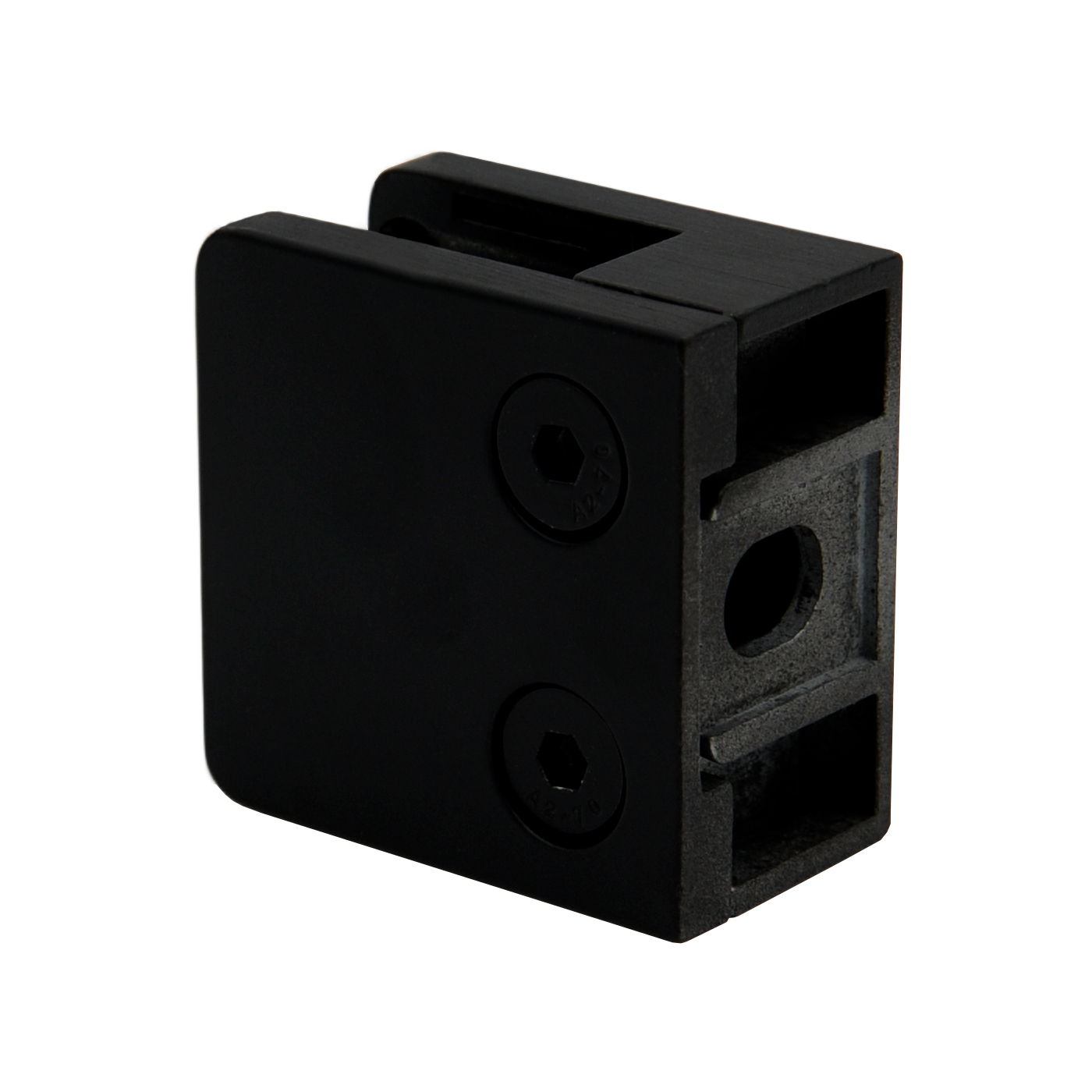

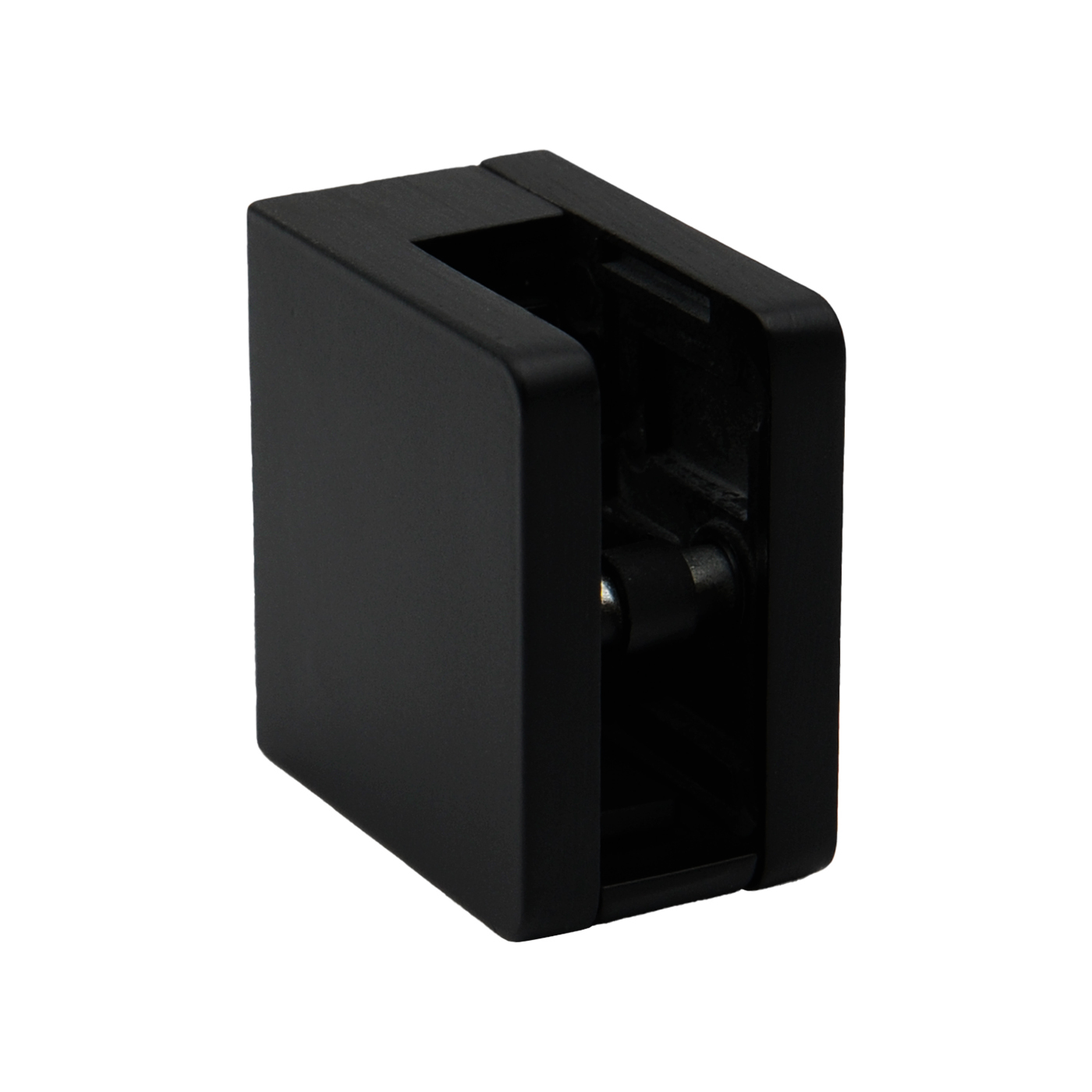

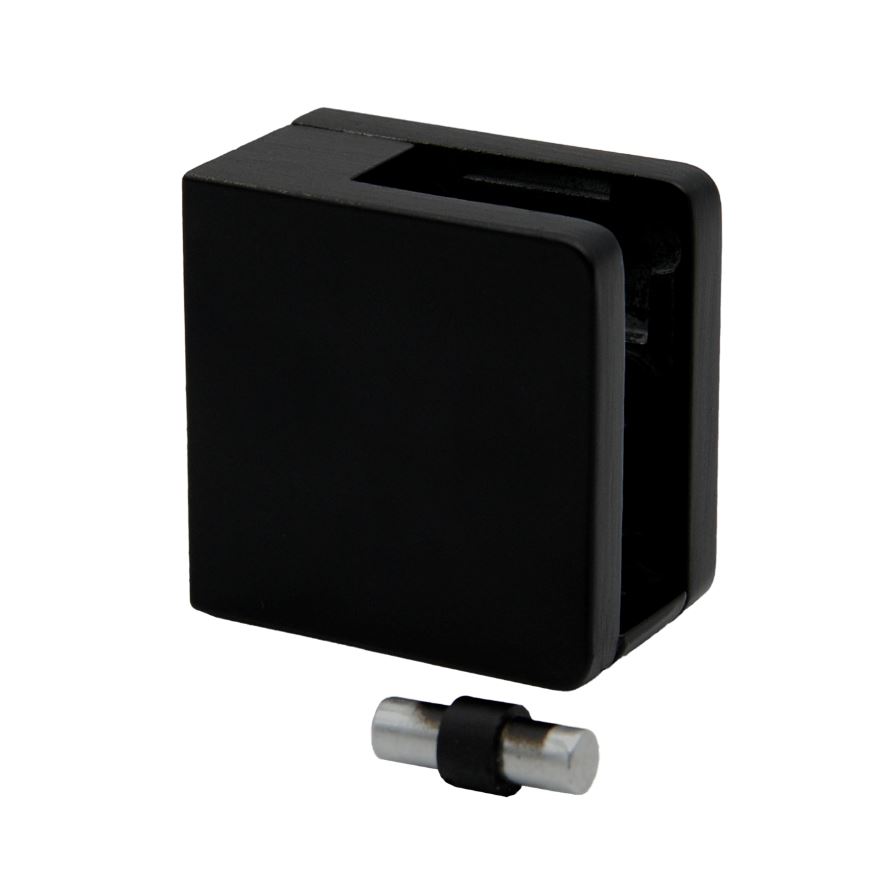

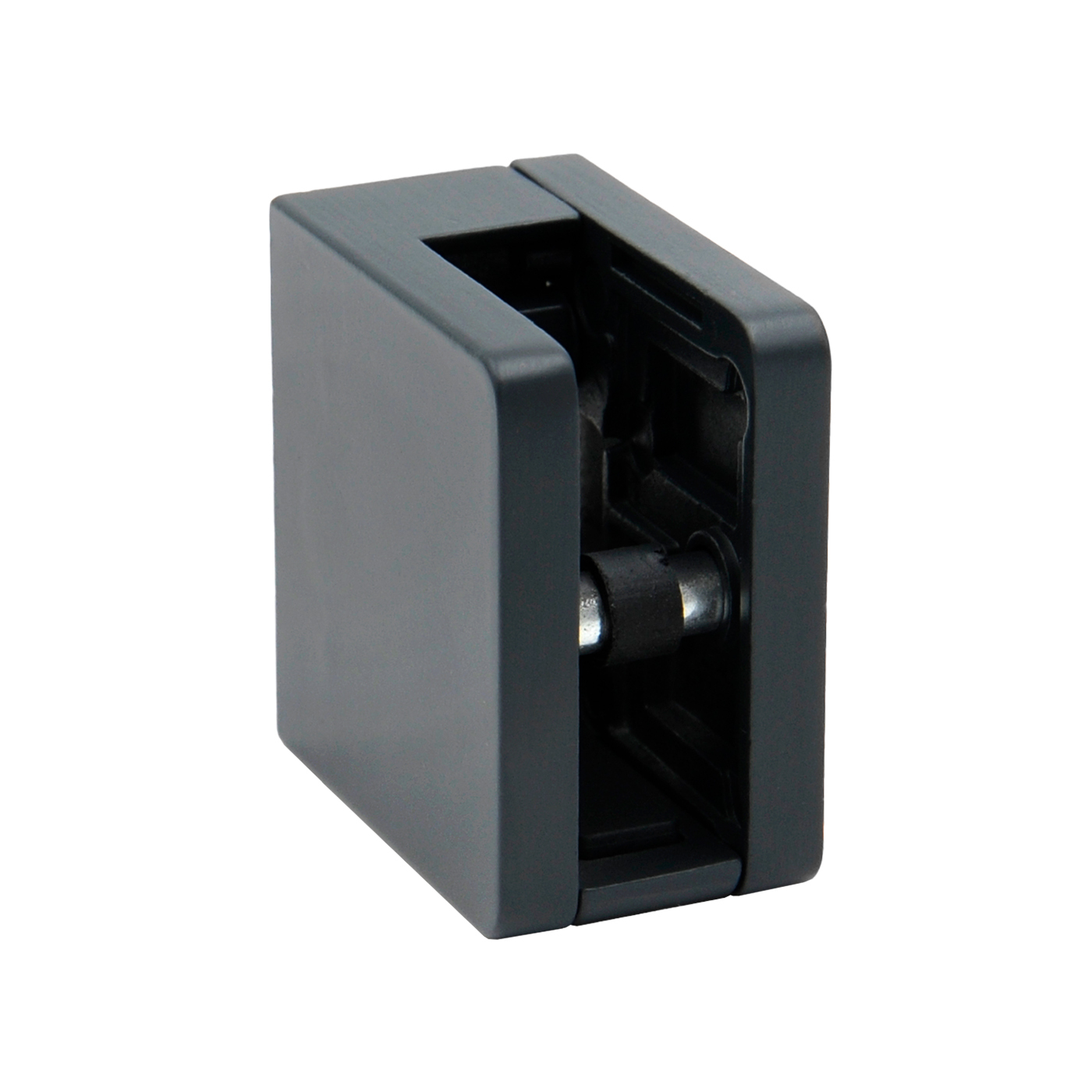

Klaasikinnitus klaasile 6-10,76mm; tugiplaat, ümarale ja kandilisele profiilile
Klaasikinnitus EI sisalda kummist tihendit ja see tuleb eraldi osta vastavalt klaasi paksusele! Hind sisaldab ühte paari kummitihendeid.
| Tootekood | d | L | H | W | a | ||
|---|---|---|---|---|---|---|---|
| N01.45K2.4XS | kandiline | 45 | 45 | 26 | 18 | AISI 304 | SATIIN |
| N01.45K2.4XP | kandiline | 45 | 45 | 26 | 18 | AISI 304 | POLEER |
| N01.45K2.ZXR | kandiline | 45 | 45 | 26 | 18 | ZAMAK | PINNAKATETTA |
| N01.45K2.4BS | ümar 42,4 | 45 | 45 | 26 | 18 | AISI 304 | SATIIN |
| N01.45K2.4BP | ümar 42,4 | 45 | 45 | 26 | 18 | AISI 304 | POLEER |
| N01.45K2.ZBR | ümar 42,4 | 45 | 45 | 26 | 18 | ZAMAK | PINNAKATETTA |

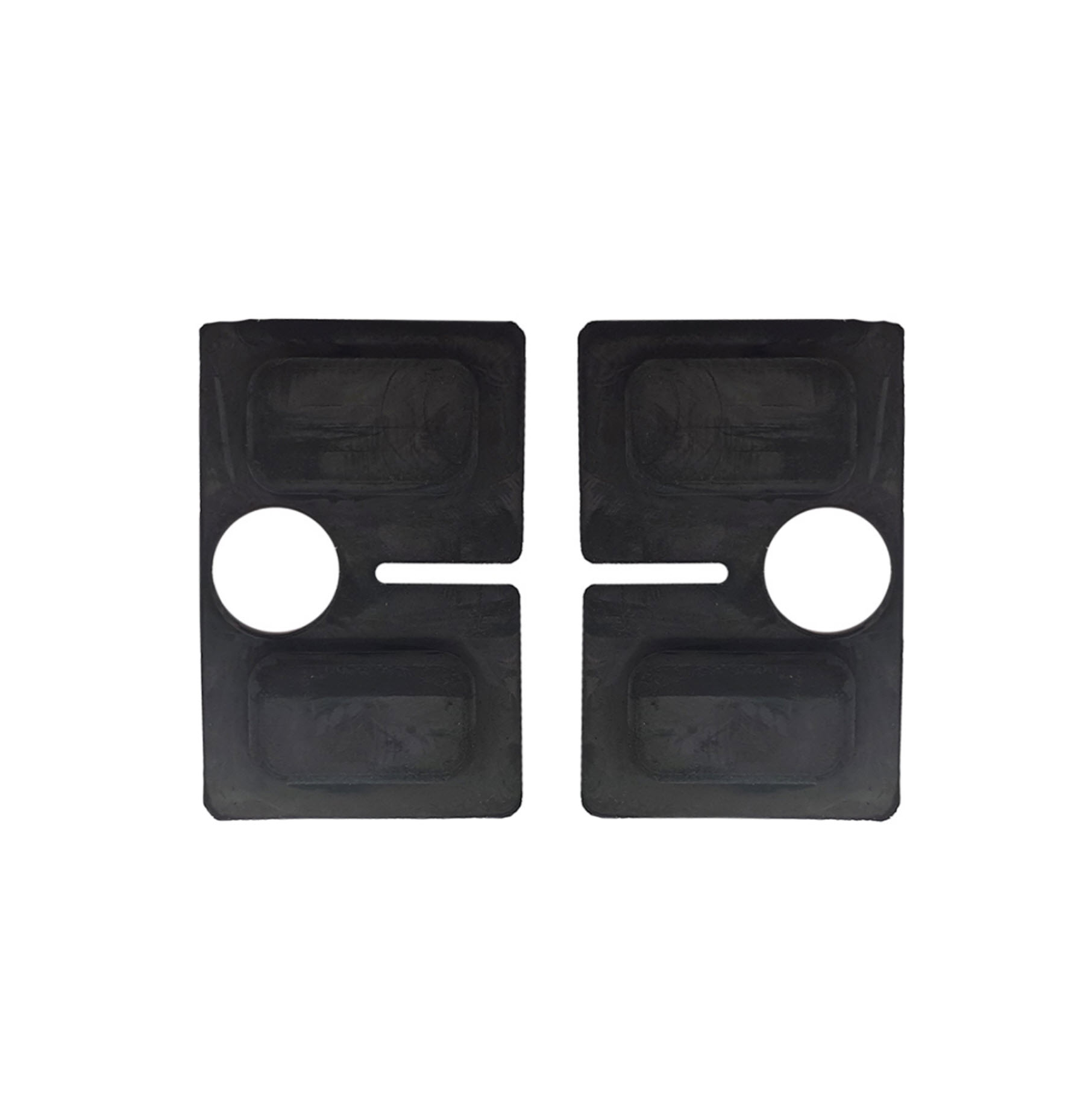

Kummist tihend
| Tootekood | Klaasi paksusele mm |
|---|---|
| N01.45K2.R06 | 6 |
| N01.45K2.R08 | 8 |
| N01.45K2.R09 | 8,76 |
| N01.45K2.R10 | 10 |
| N01.45K2.R11 | 10,76 |
